Static Weighing Batching Machine
Static automatic batching system is an automatic batching equipment that can go work with BB fertilizer equipment, organic fertilizer equipment, compound fertilizer equipment and compound fertilizer equipment, and can complete the automatic ratio according to customer needs....
Product description

Introduction of Static Weighing Batching Machine

Static automatic weighing batching system is an automatic batching equipment that can go work with BB fertilizer equipment, organic fertilizer equipment, compound fertilizer equipment and compound fertilizer equipment, and can complete the automatic ratio according to customer needs.

In a complete fertilizer production line, it is to be designed and used to dose and batch all kinds of raw materials. And mostly it is to be equipped in the organic fertilizer production line or NPK compound fertilizer production line and other series fertilizer production plant. Generally, Static automatic batching machines are used for accurate weighing and mixing various raw materials, replacing manual and volume measurement.

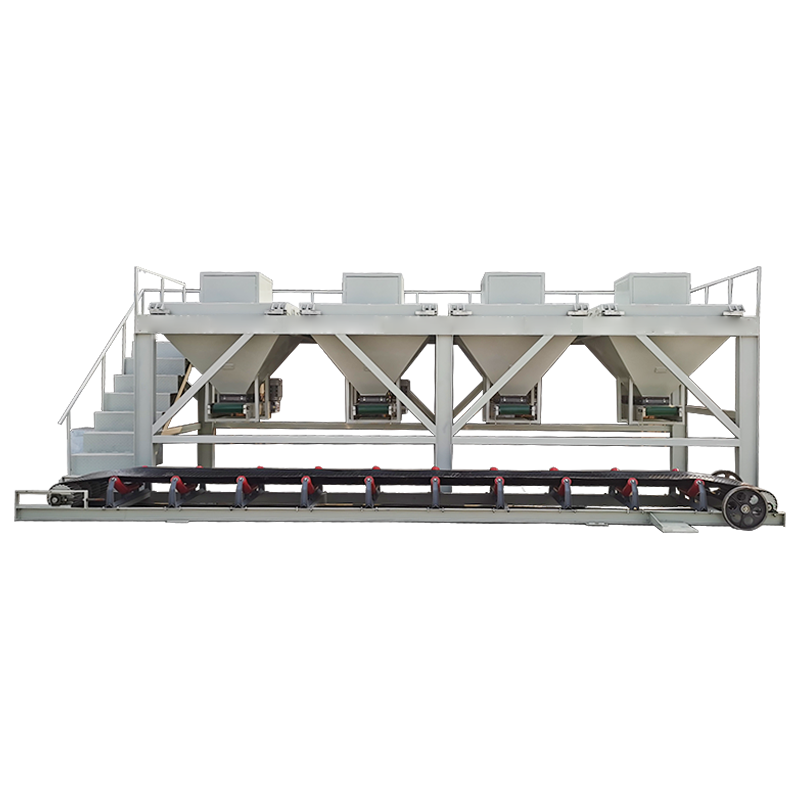

static weighing batching machine

When you use many kinds of materials to make fertilizer (such as npk fertilizer) and want to improve batching accuracy, we will recommend you static batching machine. It contains multiple material hoppers and a belt conveyor. So it can realize quantified supply of raw materials of in the production of fertilizer. It will put raw materials one by one and when the general weight reaches preset value, the belt will transport the materials to the next procedure. And if you want to reduce the cost of fertilizer production, it is suitable for you. Because it has a high degree of automation, which can greatly save time and cost on the labor force.


Model
PL-3
PL-4
PL-5
Power
1.1KW*3
1.1KW*4
1.1KW*5
Silo size
1200*1200
1200*1200
1200*1200
Precision
0.5%
0.5%
0.5%
 Electric control system
PLC
PLC
PLC

Product Details of Static Weighing Batching Machine


   batching system details
   batching system details

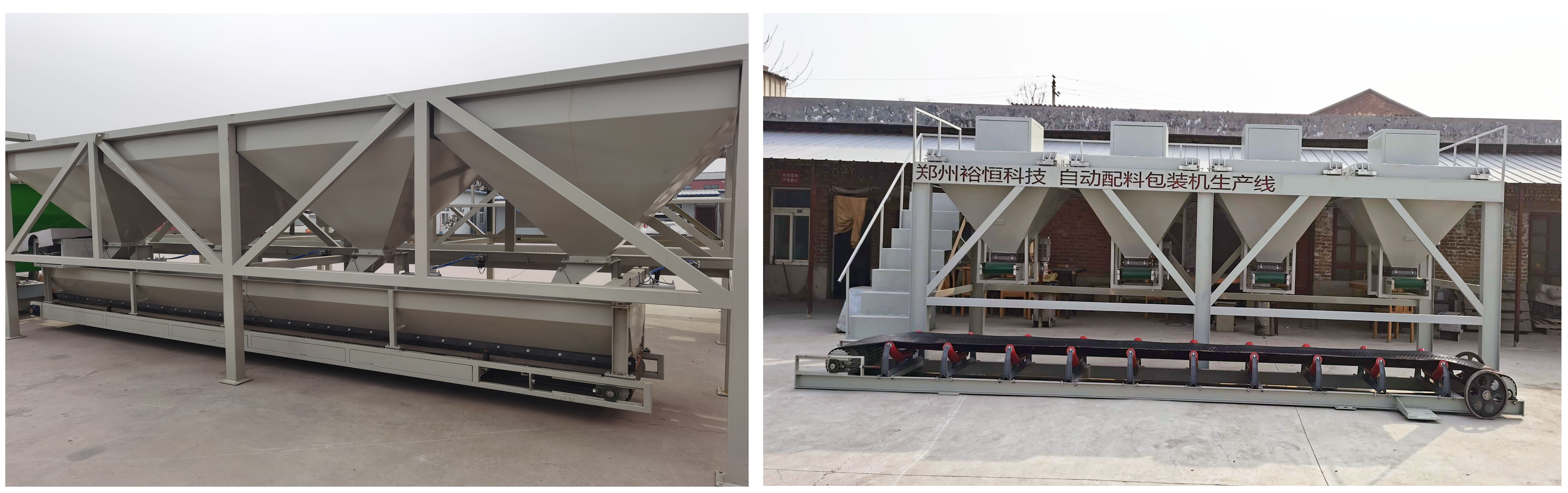

Product Pictures of Static Weighing Batching Machine

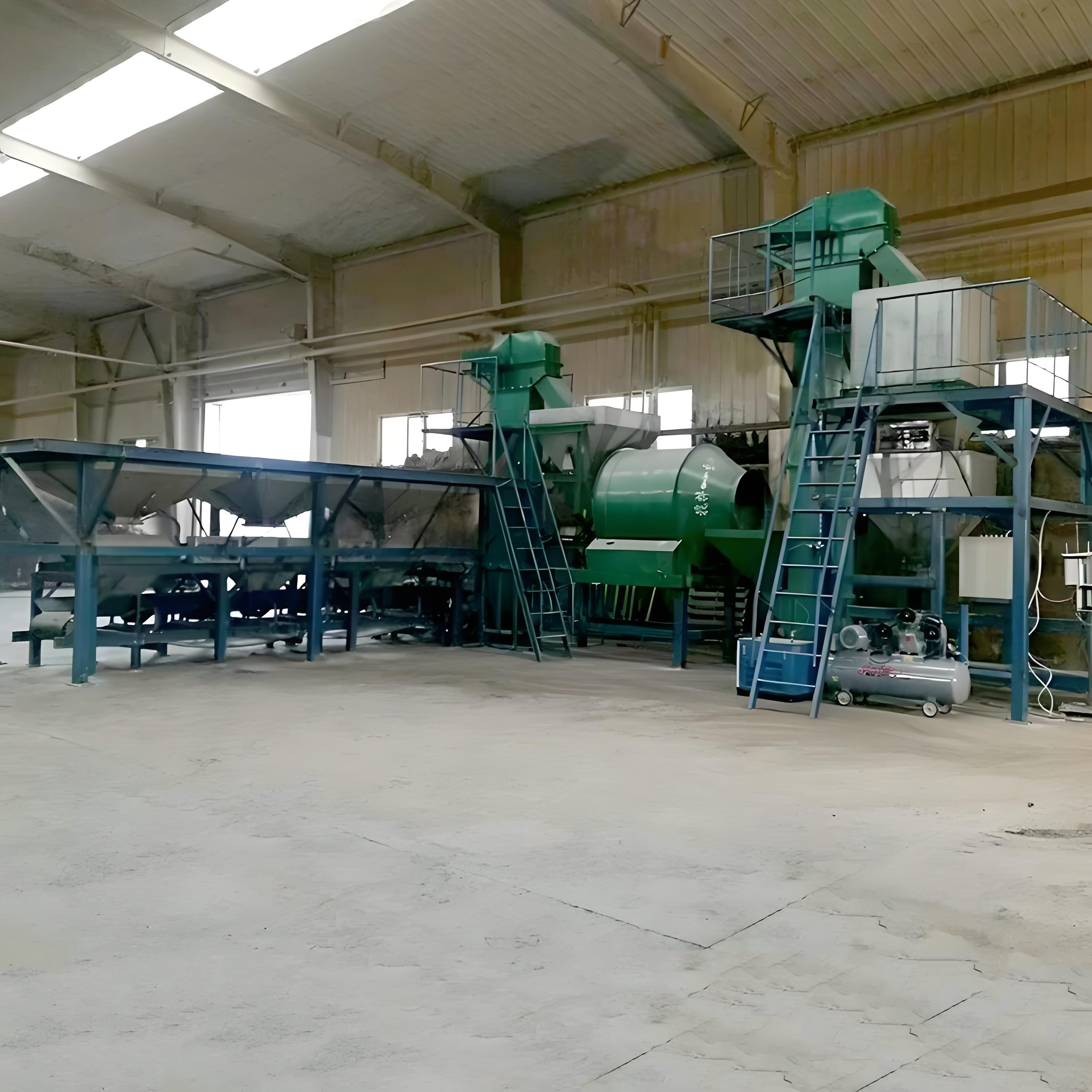

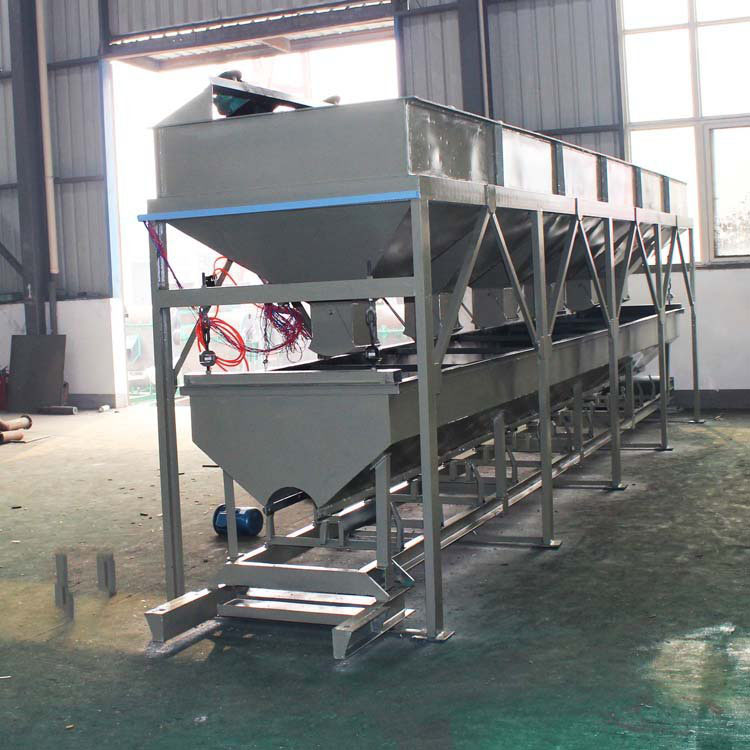

   batching machine



   batching system
