Automatic Robot Arm Palletizer
Robot palletizing machine is an organic combination of machines and computer programs. Provide higher productivity for modern production. Palletizers are widely used in the palletizing industry. Palletizing robots greatly save labor and space. The palletizing robot is flexible, precise, fast and efficient, stable and efficient....
Product description

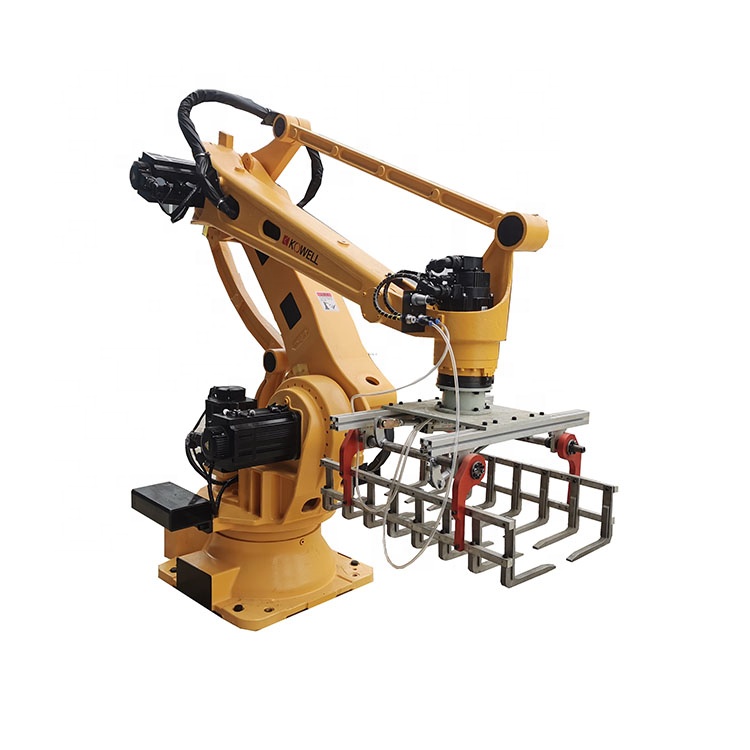

robot arm palletizer

Introduction of Robot Arm Palletizer

Robot palletizing machine is an organic combination of machines and computer programs. Provide higher productivity for modern production. Palletizers are widely used in the palletizing industry. Palletizing robots greatly save labor and space. The palletizing robot is flexible, precise, fast and efficient, stable and efficient.

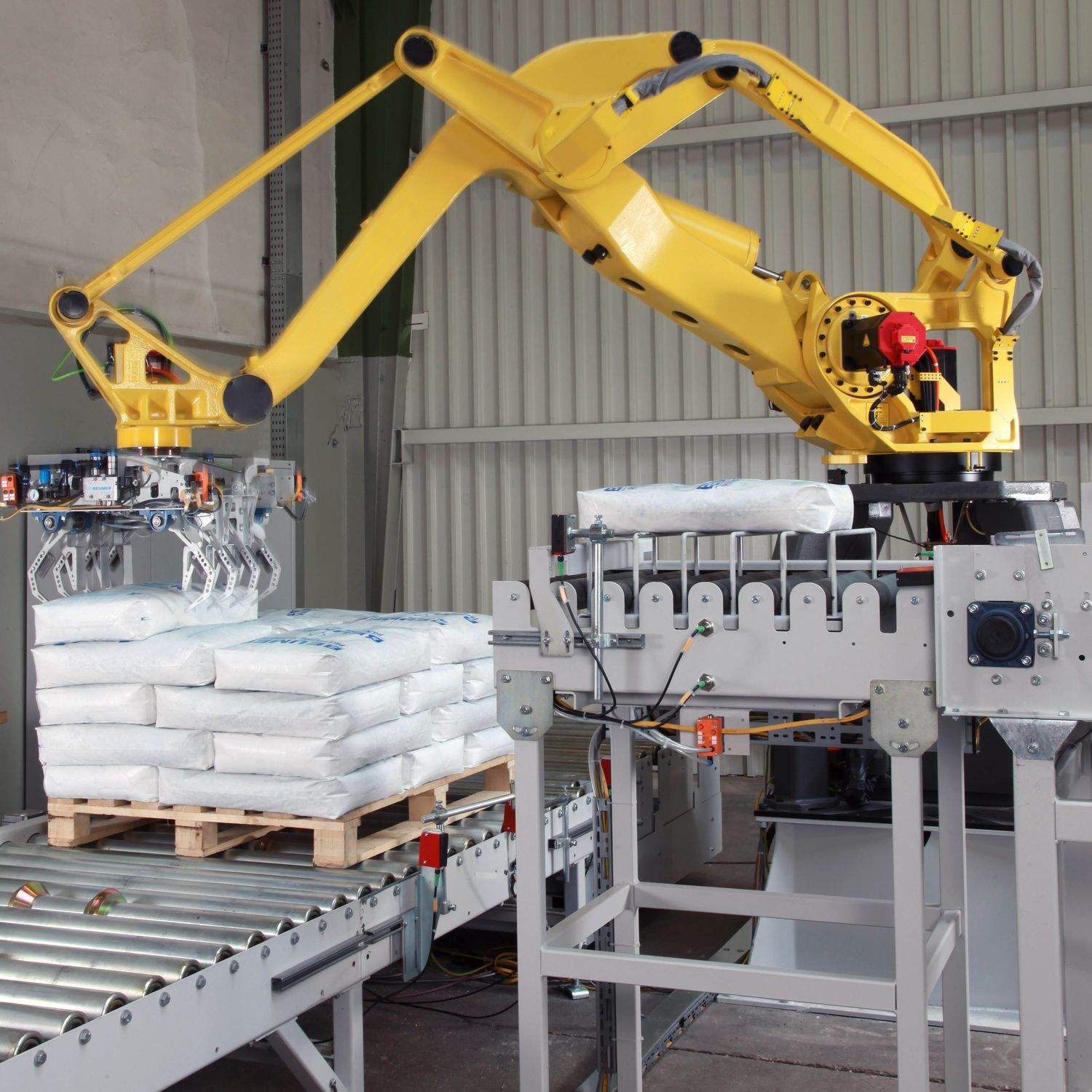

palletizing machine

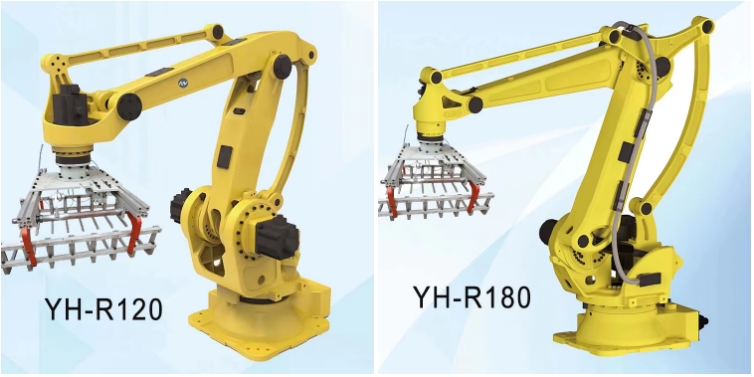

palletizing type

Our Robotic Palletizer handles any packaging container (cases, trays, totes, bags, open-top boxes, etc.). Multiple configurations are possible to suit the number of products, the desired rate, the pallet formats, etc. Contact us if you're rather interested in our Automatic Palletizer Machine.We can provide the two different type palletizer machine for your reference according to your budget or the factory workshop layout.

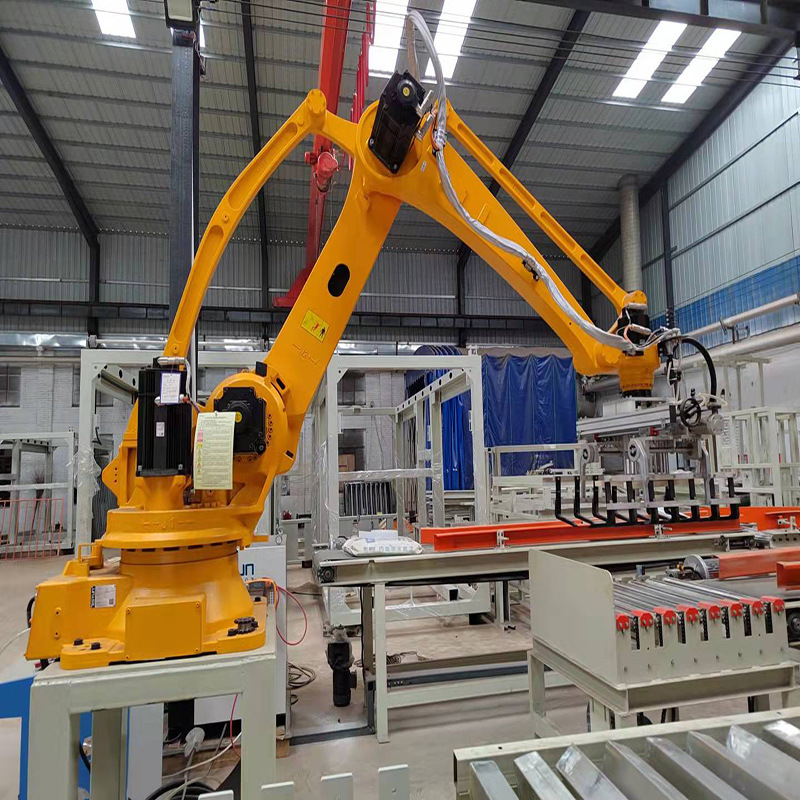

palletizer

Model
YH-R120
YH-R180
Working radius
2400mm
3200mm
Maximum carrying weight
120 kg
180 kg
Power capacity
20 KVA
27 KVA
Body weight
1020 kg
1150 kg
Power
18.5kw
18.5kw
Type
Vertical joint 4 DOF
Main functions
handling, palletizing, loading and unloading
Position repeatability
±0.2mm
Use environmental conditions
0-45℃ , 20-80%RH (no condensation phenomenon)
Protection level
Equivalent to IP54
Applicable industries
packaging, chemical industry, metallurgy, casting, construction, cement, feed etc.

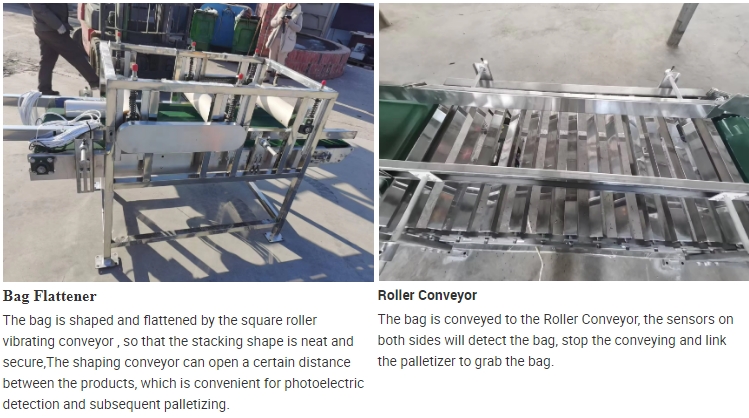

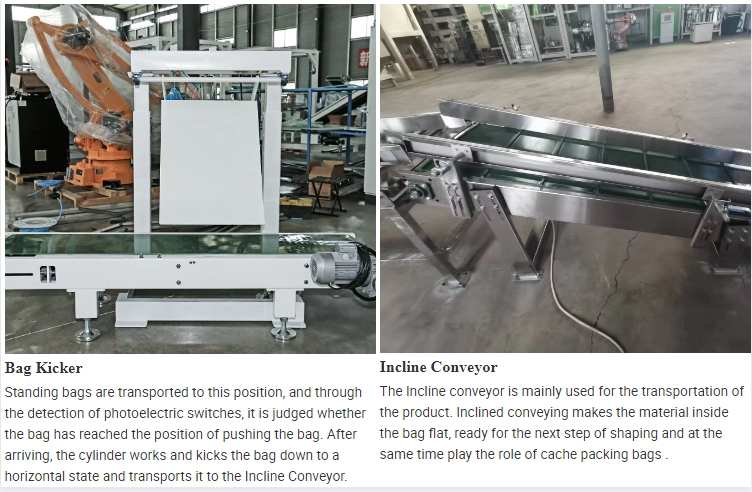

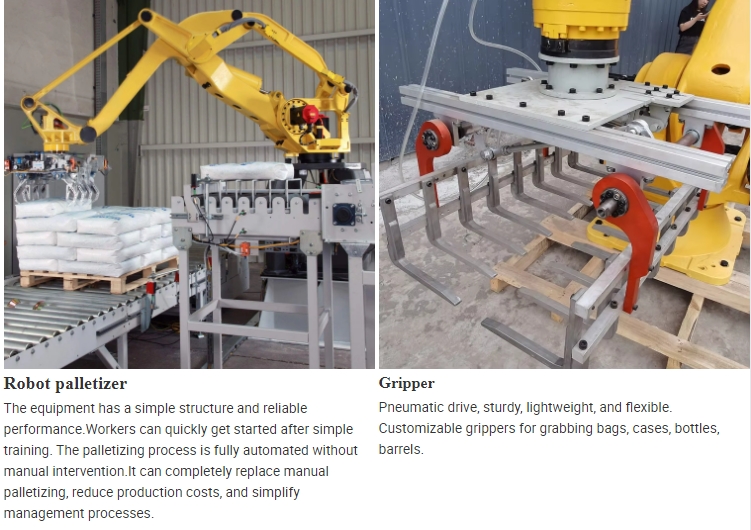

Structure of Robot Arm Palletizer

palletizer details

palletizer details

palletizer details

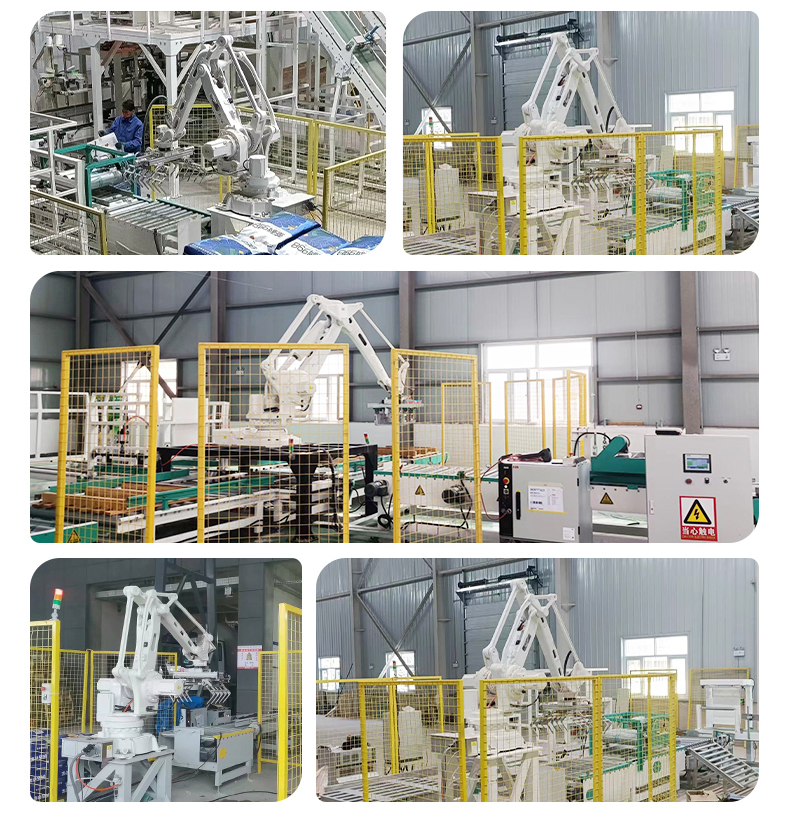

Project Flow of Robot Arm Palletizer

robotic palletizer machine
