Jumbo bag filling machine is often used for fast and large-capacity professional quantitative weighing and packaging of solid granular materials and powdered materials. The main components of jumbo bag filler are: feeding mechanism, weighing mechanism, pneumatic actuator, rail mechanism, bag clamping Mechanisms, dust removal mechanisms, electronic control parts, etc., are currently necessary special equipment for large-scale soft bag packaging in the world....
Product description

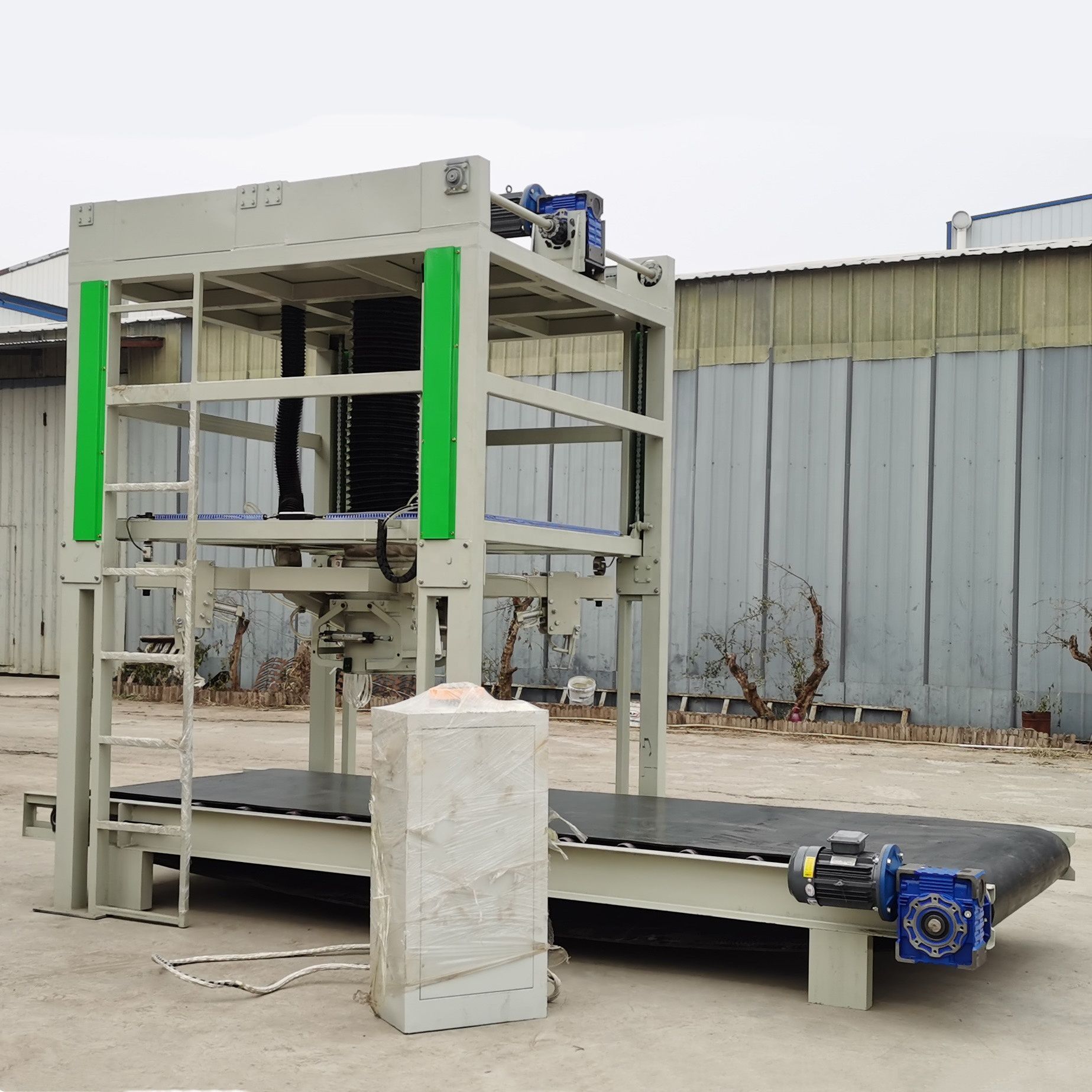

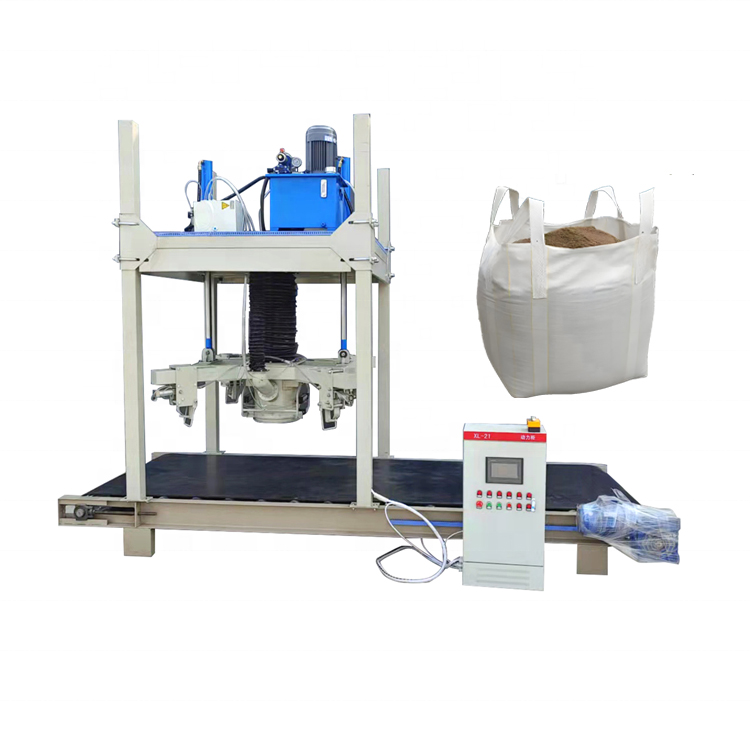

Introduction of Jumbo Bag Packing Machine
500-1500kg Jumbo bag filling machine is often used for fast and large-capacity professional quantitative weighing and packaging of solid granular materials and powdered materials. The main components of jumbo bag filler are: feeding mechanism, weighing mechanism, pneumatic actuator, rail mechanism, bag clamping Mechanisms, dust removal mechanisms, electronic control parts, etc., are currently necessary special equipment for large-scale soft bag packaging in the world.
item
value
Dimension(L*W*H)
1200*1800*3800mm
Weight (KG)
2500
Production Capacity
20-30 bags/hour
Packing range
500-1500kg
Packing accuracy
±0.2%
Structure of Jumbo Bag Packing Machine

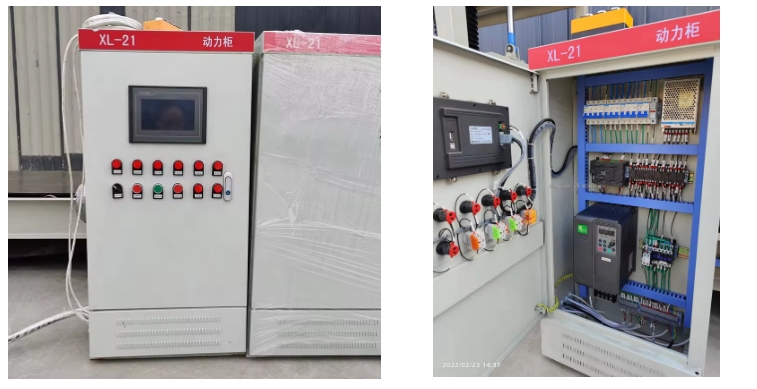

The Main Control Cabinet
A computer-programmed control instrument with High measurement accuracy, stable performance, and digital display. Chinese, English and French languages. Automatic setting of control parameters, automatic drop correction, super differential alarm, fault diagnosis, etc.

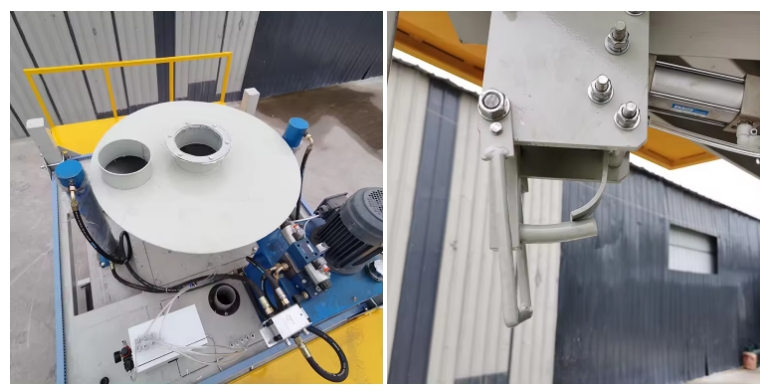

The Feed opening
The out layer of the machine adopts an electrostatic injection plastic process. The feed opening is made of smooth stainless steel, wear resistance, high fluidity, hygienic, corrosion resistance, and extended equipment service life.
Applications of Jumbo Bag Packing Machine
Product Feature of Jumbo Bag Packing Machine
* Multi-purpose packaging machine with electronic weighing, automatic bag removal and dust removal
* High degree of automation, high packaging precision, adjustable packaging speed, superior structure, unique hydraulic lifting system
* The material contact part is made of 304 stainless steel, more durable * The machine body adopts plastic spraying process, surface is smoother and anti rust
* Professional digital instrument, easy to operate, stable performance * Pneumatic control technology, fast speed and high precision
