Products

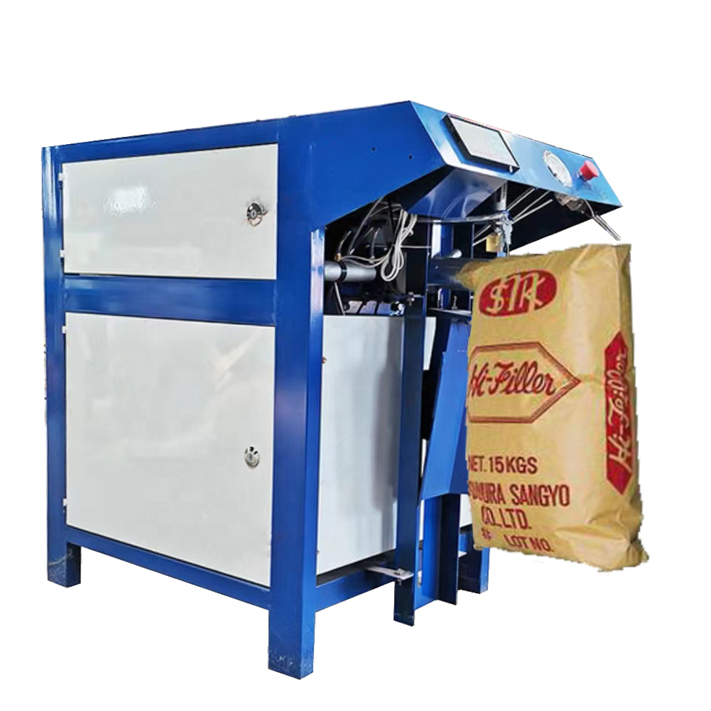

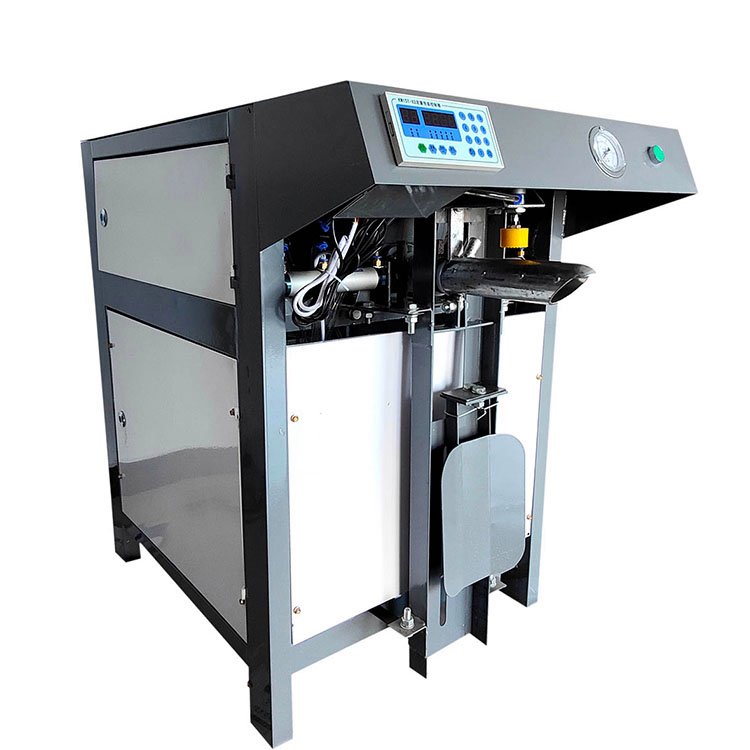

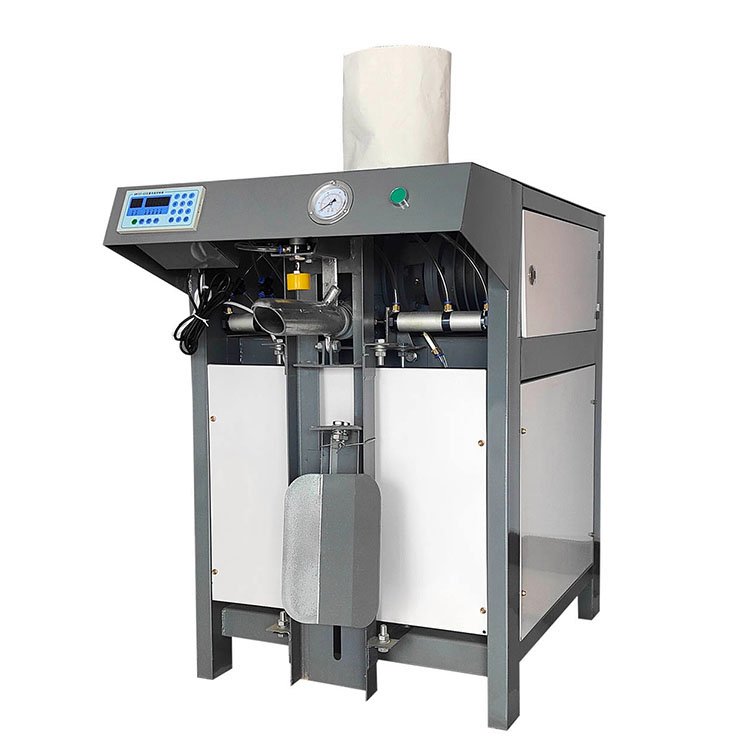

Impeller Valve Bag Packing Machine
Valve port automatic weighing and packing machine is specially designed for dry mortar, cement, chemical industry powder weighing and packing machine. It has the advantages of small size, strong function, high reliability and good adaptability. Integrated weighing control, with unique anti-interference ability. The valve bag is a self-sealing bag, no additional sewing bag is required to improve work efficiency....
Product description

Introduction of Impeller Valve Bag Packing Machine

Valve port automatic weighing and packing machine is specially designed for dry mortar, cement, chemical industry powder weighing and packing machine. It has the advantages of small size, strong function, high reliability and good adaptability. Integrated weighing control, with unique anti-interference ability. The valve bag is a self-sealing bag, no additional sewing bag is required to improve work efficiency.

cement packing machine


Applicable materials
Dry powders
Weighing Range
5-50kg, adjustable
Capacity
8-12 t/h
 Motor Power
3kw
Measuring accuracy
±0.2-0.4 %
Air Requirements
0.4-0.8MPa ( dry compressed air)
Working temperature
0 ℃-50 ℃
Storage temperature
-20 ℃-70 ℃
Dimensions
1070x670x1030 mm

Structure of Impeller Valve Bag Packing Machine

valve port packing machine

Applications of Impeller Valve Bag Packing Machine

This blade wheel type valve mouth packing machine is suitable for the packing of construction or chemical powder with large proportion and good fluidity. Such as cement, gaolin, tile adhesive.

filling materials

valve bag

Product Feature of Impellet Valve Bag Packing Machine

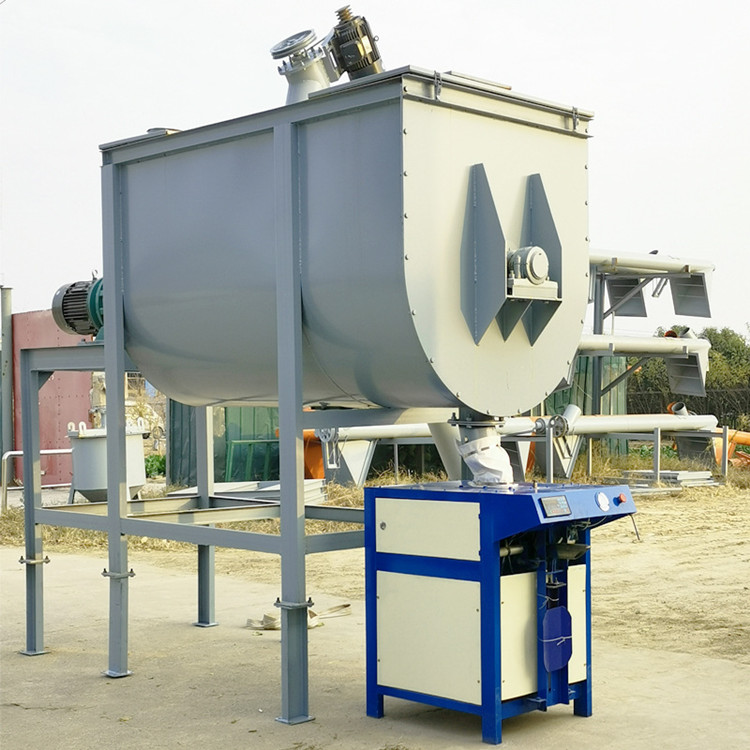

dry powder mator packing machine

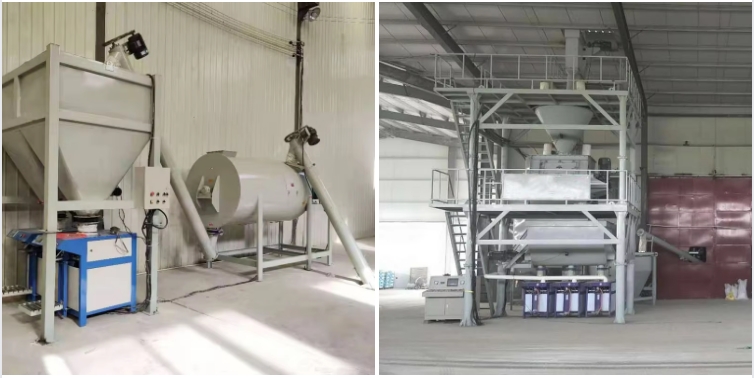

dry powder mortar production line
